Teaching Consolidation: Case Study of Preloading with Vertical Drains

Robb E. S. Moss; Judd King; Gregg L. Fiegel

Teaching Consolidation: Case Study of Preloading with Vertical Drains: Supplementary Material

This electronic supplement contains the lab test results given to the students as part of their pre-consolidation settlement project. The students are asked to evaluate the lab tests graphically to determine consolidation parameters for subsequent calculations. Enclosed are ten (10) �e log p� plots, four (4) log time, and four (4) square-root time plots from the 1D incremental oedometer lab tests. Download all plots here.

E-Log P Curves

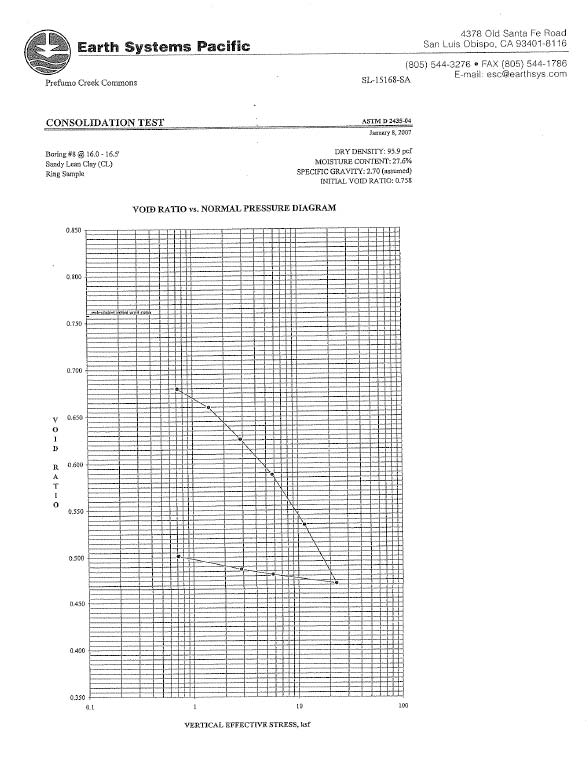

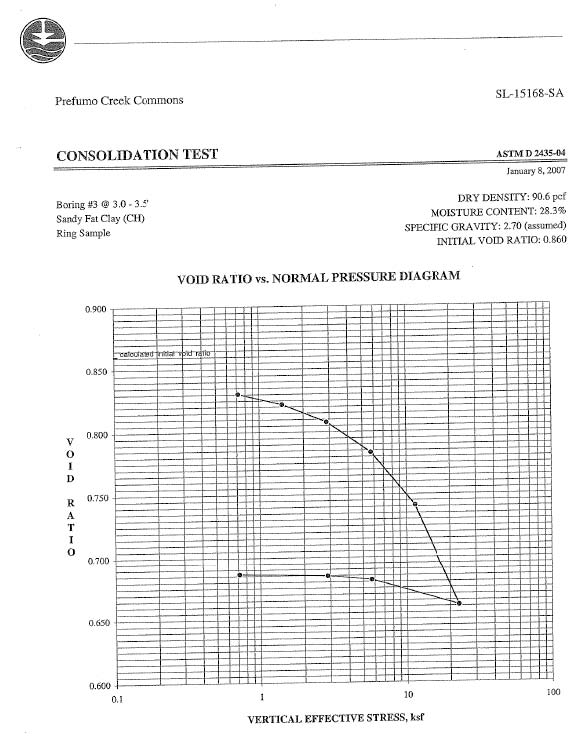

Download Boring No 3, 3-3.5'	Download Boring No 3, 6-6.5'

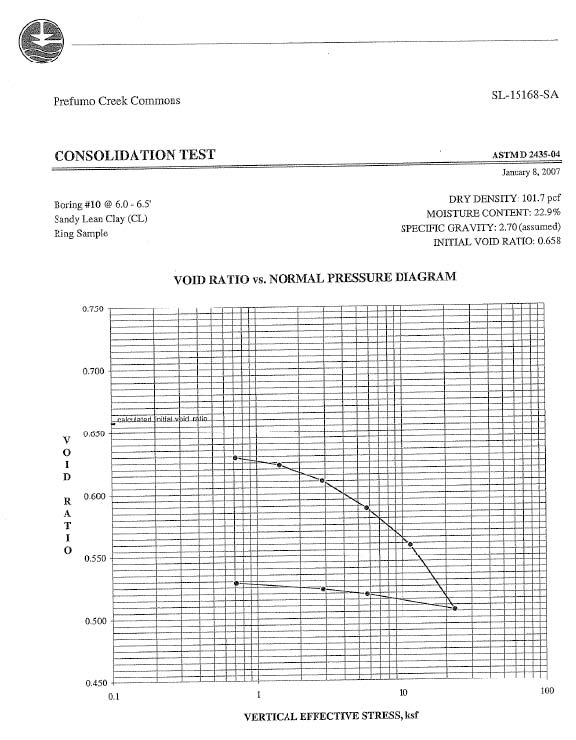

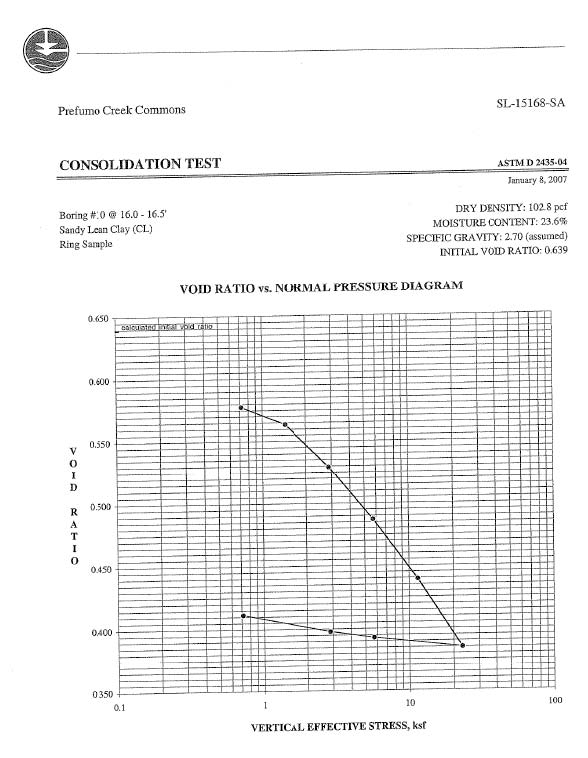

Download Boring No 10, 6-6.5'	Download Boring No 10, 16-16.5'

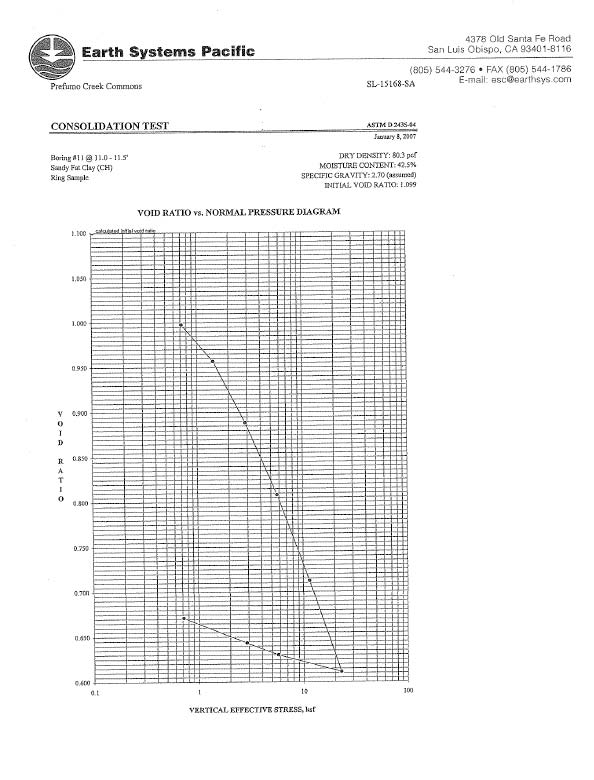

Download Boring No 8, 16-16.5'	Download Boring No 11, 11-11.5'

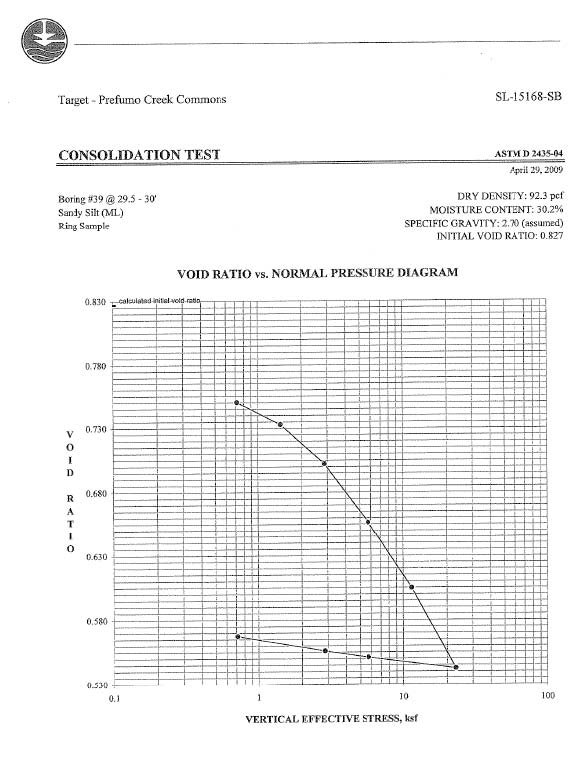

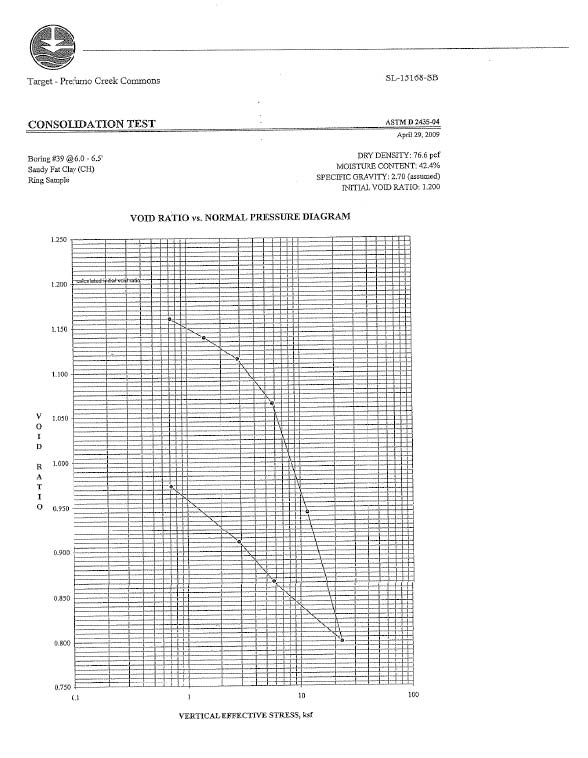

Download Boring No 39, 6-6.5'	Download Boring No 39, 29.5-30'

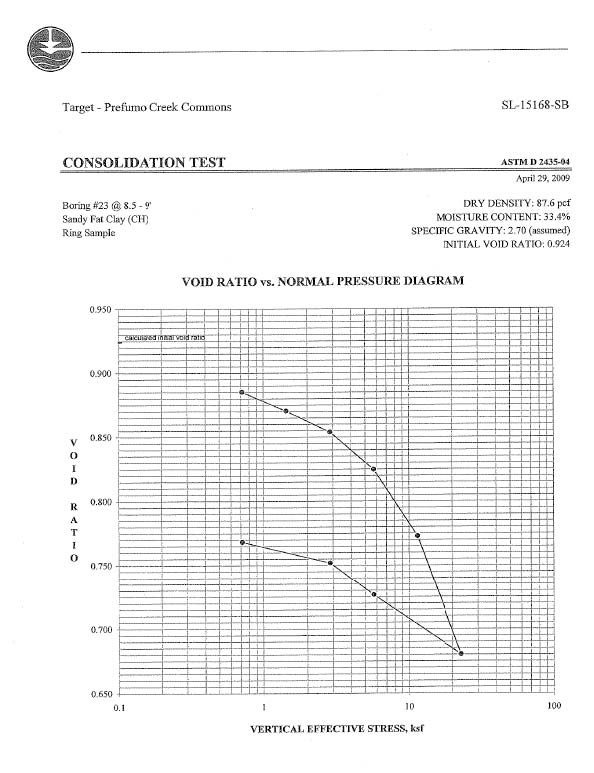

Download Boring No 21, 13.5-14'	Download Boring No 23, 8.5-9' (Included as Figure 4 in the paper)

Settlement-Time Curves

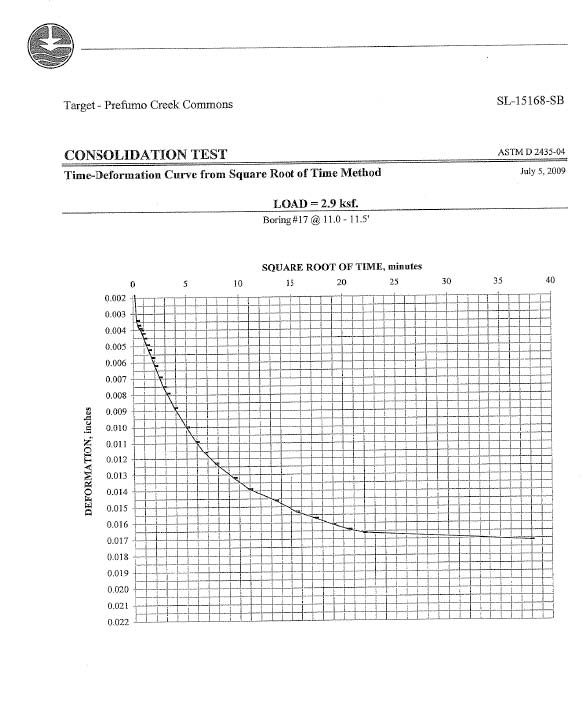

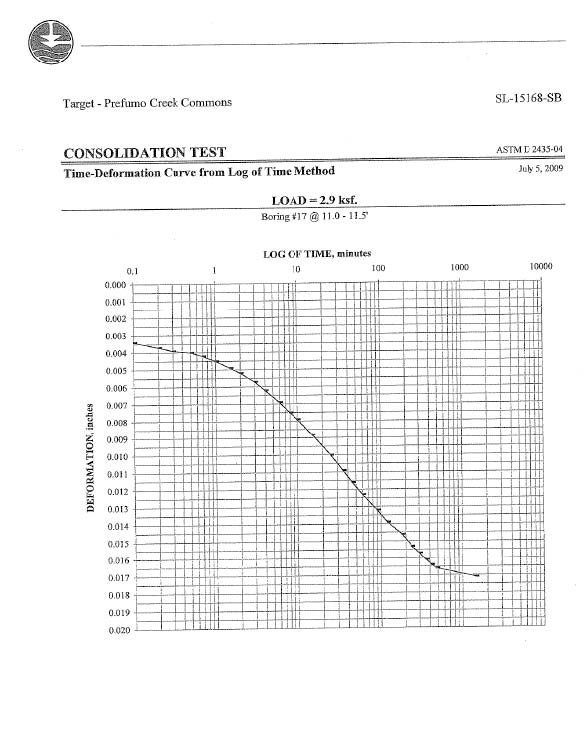

Download Boring No 17, 11-11.5' (Log of Time Method)	Download Boring No 17, 11-11.5' (Square Root of Time Method)

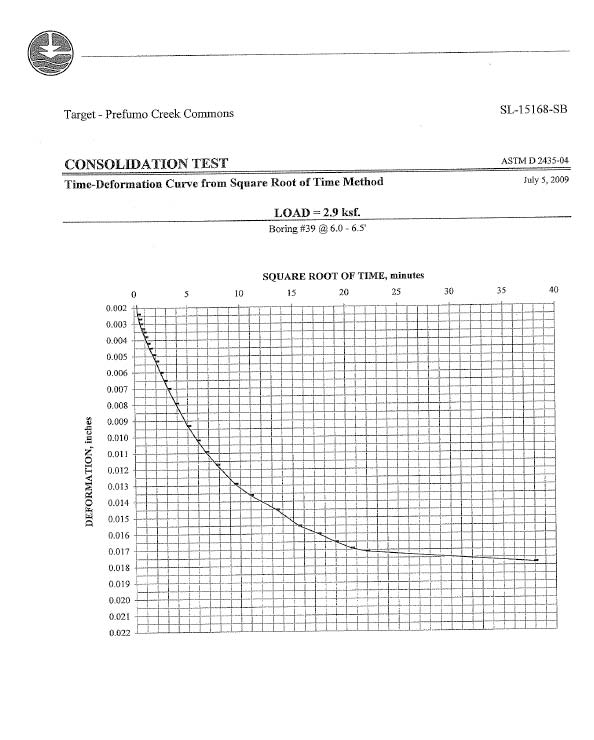

Download Boring No 39, 6-6.5' (Log of Time Method) (Included as Figure 5 in the paper)	Download Boring No 39, 6-6.5' (Square Root of Time Method)

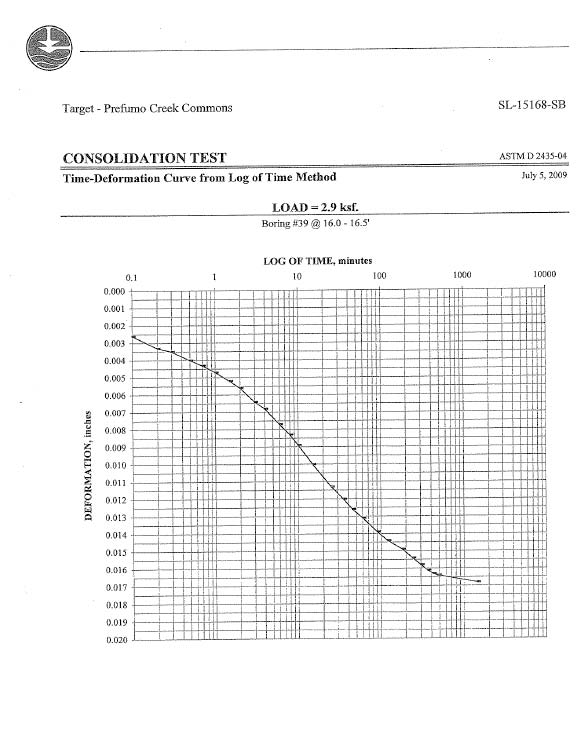

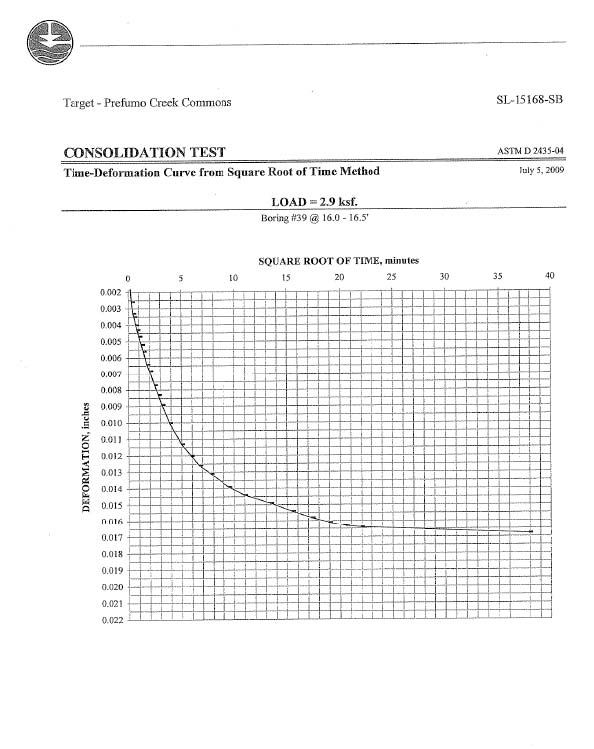

Download Boring No 39, 16-16.5' (Log of Time Method)	Download Boring No 39, 16-16.5' (Square Root of Time Method)

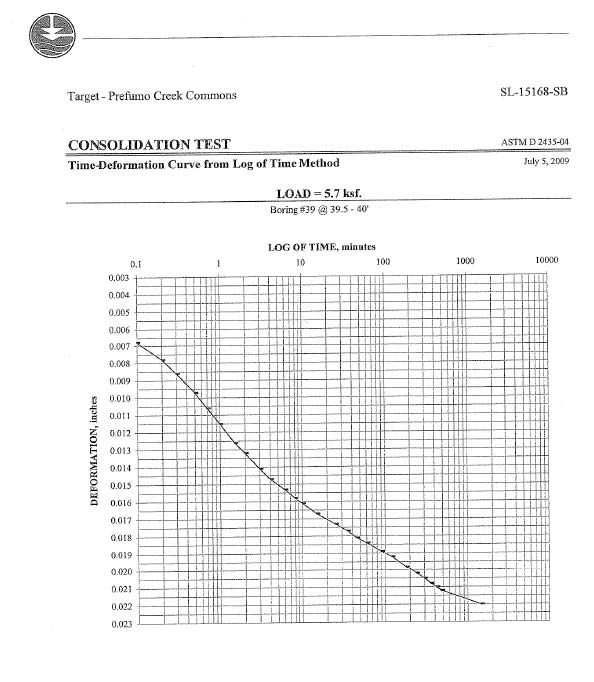

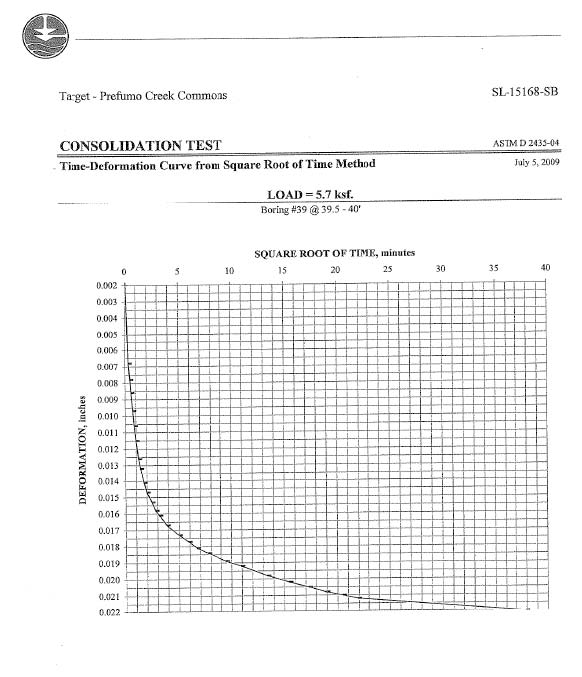

Download Boring No 39, 39.5-40' (Square Root of Time Method)	Download Boring No 39, 39.5-40' (Square Root of Time Method)

Citation

Moss, R. E., King, J., Fiegel, G. L. (2016). Teaching Consolidation: Case Study of Preloading with Vertical Drains, Vol. 3, Issue 4, p.222-233. doi: 10.4417/IJGCH-03-04-02
